Description

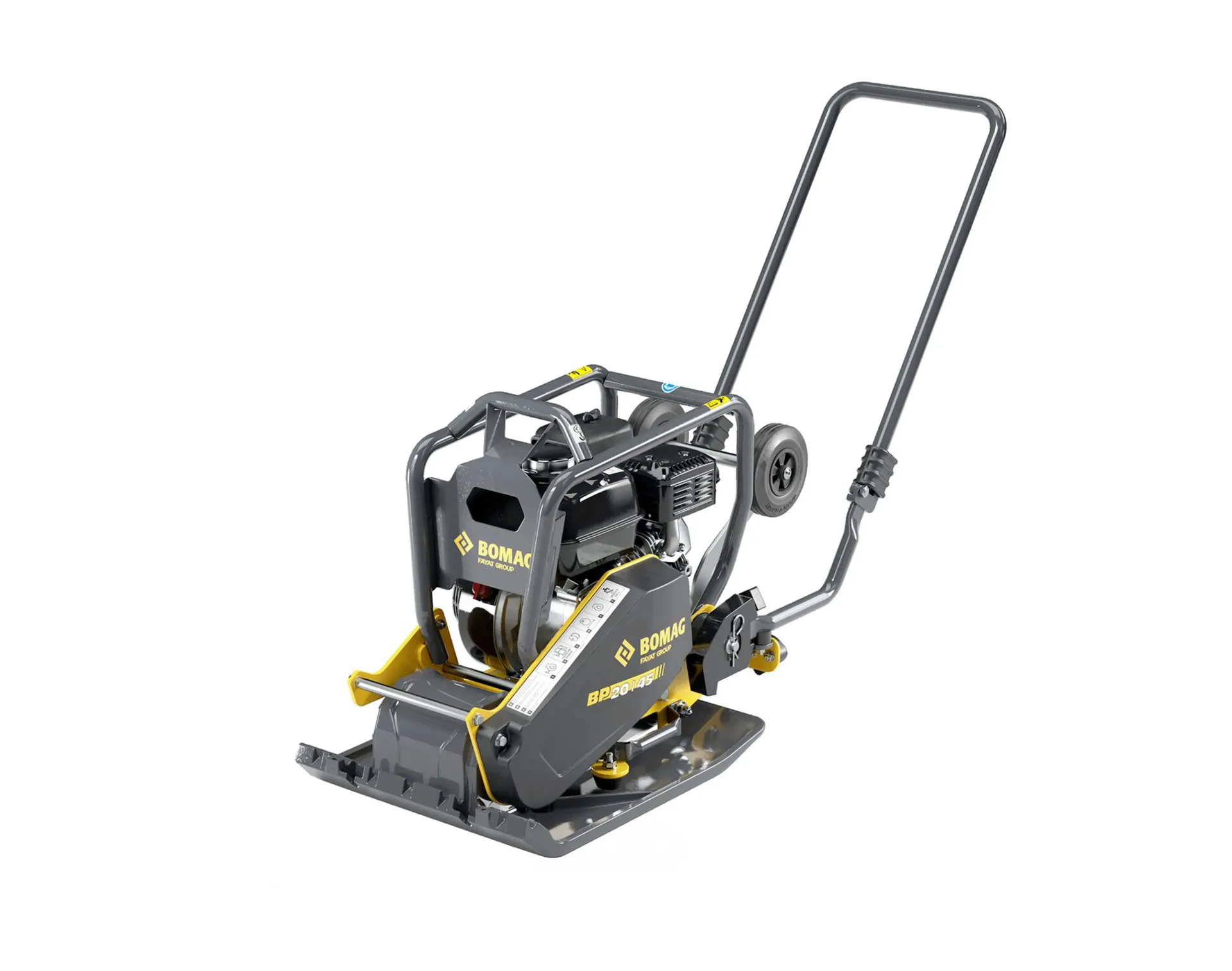

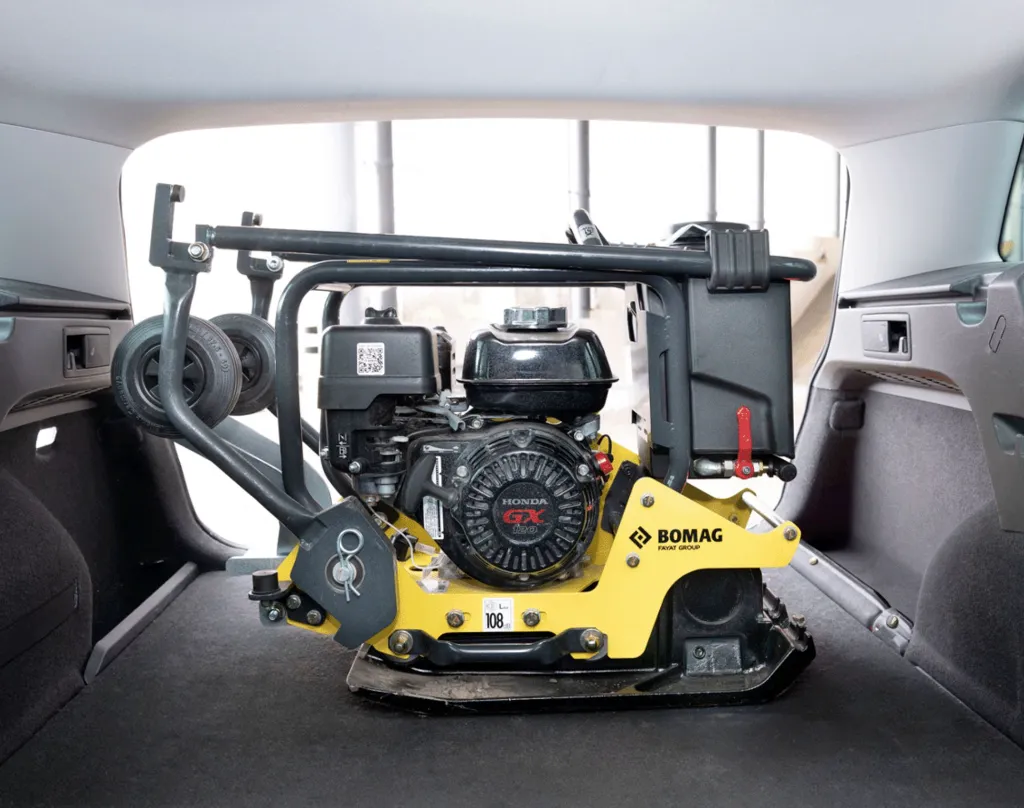

The BOMAG BP 20/45 is a compact and durable single-direction vibratory plate compactor designed for efficient soil and asphalt compaction in confined areas. Its foldable, vibration-insulated guide handle allows for easy transport and storage, while the rugged protective frame and cyclone dust filter help extend engine life in demanding jobsite conditions. Ideal for landscaping, paving, and repair work, the BP 20/45 delivers reliable performance with low maintenance requirements.
| Specification | Details |
|---|
| Model | BP 20/45 |
| Machine Type | Vibratory Plate |
| Operating Weight | 203 lb |
| Working Width | 23.6 in |
| Travel Speed | 88.6 ft/min |
| Gradeability | 32% |

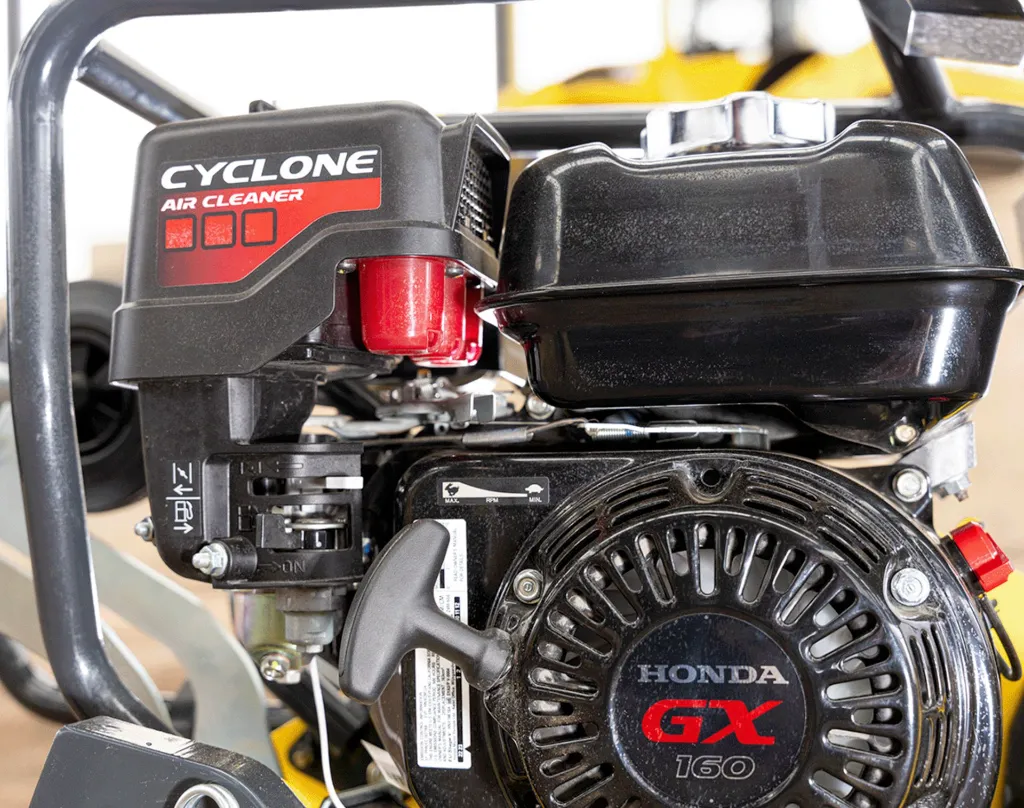

| Engine | Honda GX160 |
| Engine Power | 4.8 hp |
| Engine Speed | 3,600 rpm |
| Fuel Type | Gasoline |
| Frequency | 80 vpm |
| Amplitude | 0.08 in |
| Fuel Capacity | 0.8 gal |
