Description

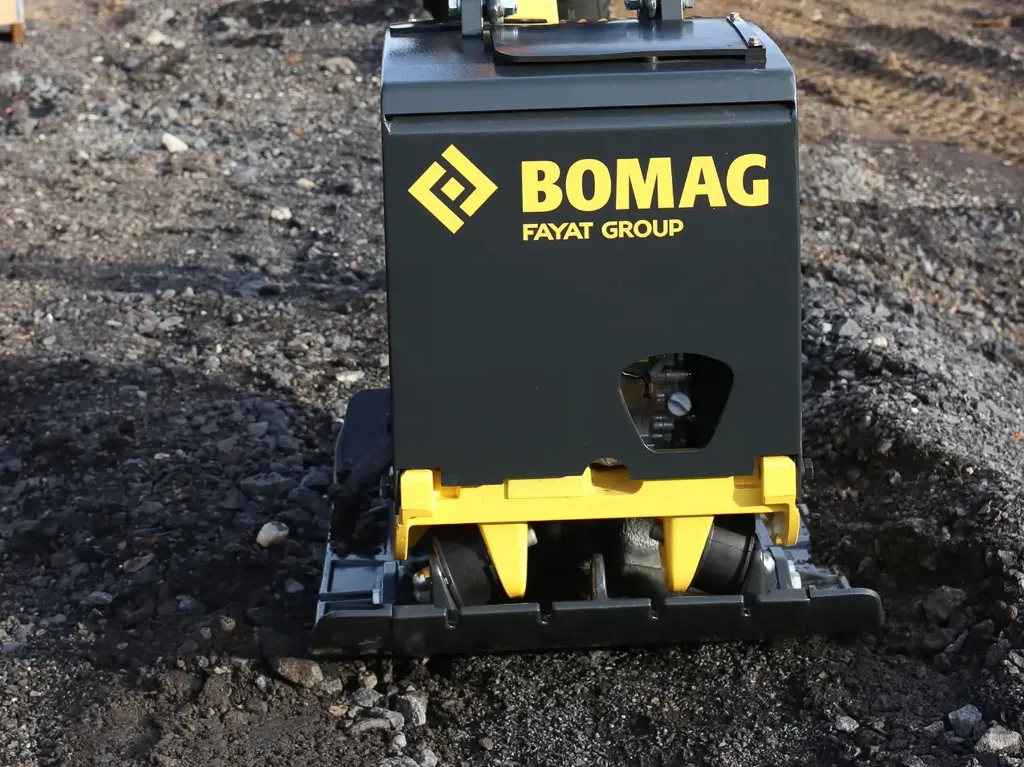

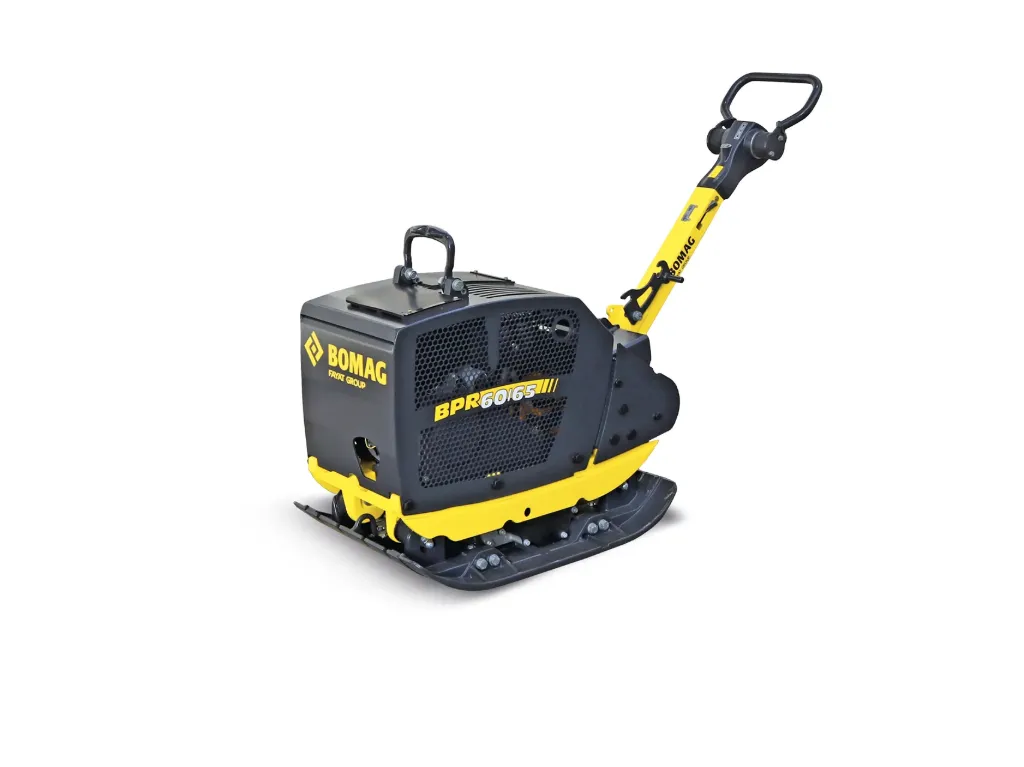

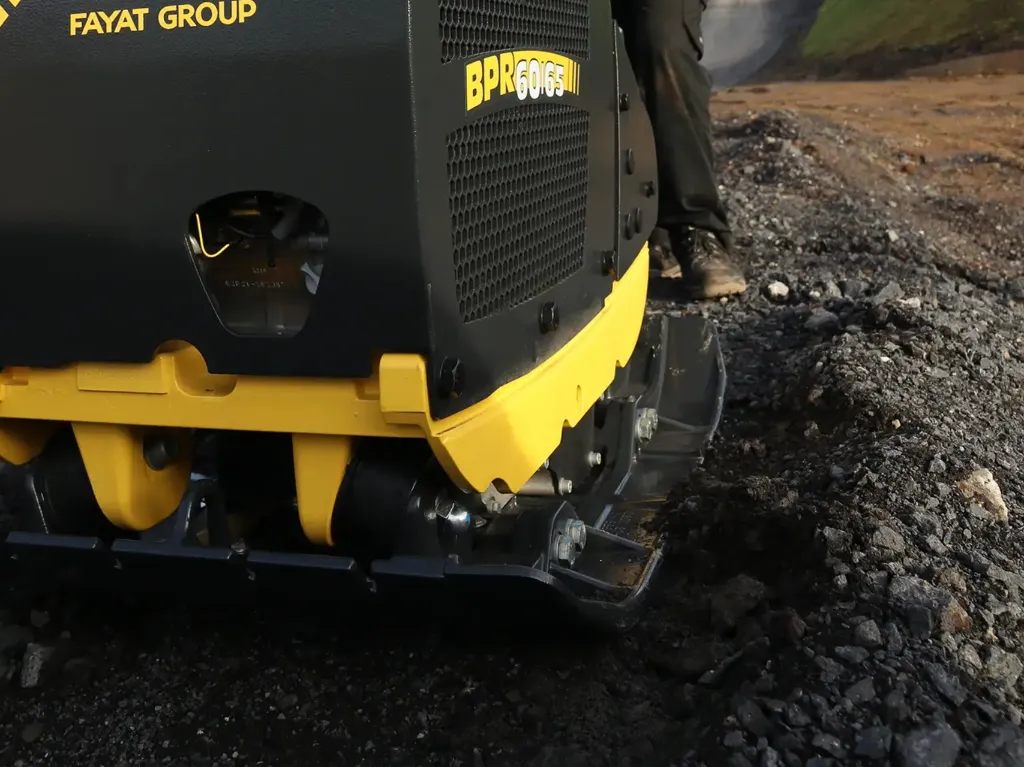

The BOMAG BPR 60/65 is a high-performance reversible vibratory plate compactor designed for demanding soil, aggregate, and paving stone compaction applications. Its powerful hydrostatic forward and reverse drive provides precise control and excellent maneuverability, while the vibration-isolated guide handle reduces operator fatigue during prolonged operation. Featuring a rugged protective frame and durable construction, the BPR 60/65 is well suited for road construction, trench compaction, landscaping, and foundation work, delivering exceptional compaction force with dependable, low-maintenance performance.
| Specification | Details |
|---|
| Model | BPR 60/65 D |
| Machine Type | Reversible Vibratory Plate |
| Operating Weight | 926 lb (472 kg) |
| Working Width | 25.6 in (650 mm) |
| Travel Speed | Up to 89 ft/min (27 m/min) |
| Gradeability | 35% |
| Engine | Hatz 1B40 Diesel |
| Engine Power | 9.4 hp (7.0 kW) |
| Engine Speed | 3,000 rpm |
| Fuel Type | Diesel |
| Frequency | 66 Hz (3,960 vpm) |
| Centrifugal Force | 13,490 lbf (60 kN) |
| Fuel Capacity | 1.3 gal (5.0 L) |
