Description

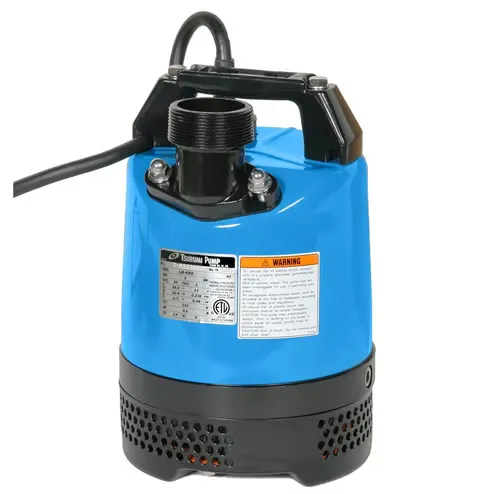

Powerful pump built with durable materials in an easy handling design. Top discharge provides maximum motor cooling efficiency allowing continuous duty operation at low levels and extended dry-run capability.
- LB-480 Slimline design pump allows to fit into 8 in pipes.
- Urethane, Semi Vortex Impeller and Wear Plates for maximum durability and maintaining pump performance.
- Dual Inside Mechanical Seal With SiC faces provides longer operational life.
- Oil Lifter provides lubrication of the seal faces. (Patented)
- V-Ring Seal design protects mechanical seal from abrasive particles. (Optional Accessories)
- TS-301 Float Switch for automatic operation.
Specifications
Motor Output (HP) | 2/3 |
Phase | Single |
Discharge Bore (in.) | 2 |
Voltage/Amp | 110/6.1 |
Cable Length (ft.) | 32 |
Dimension (Dia x H, in.) | 7-11/16 x 11-1/4 |
Continuous Running Water Level (in.) | 2 |
Pump Weight (lbs.) | 28 |
QUANTITY DISCOUNT: 6 or more
