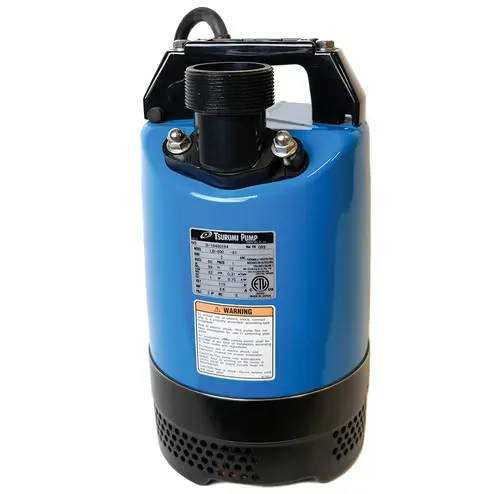

Description
Powerful pump built with durable materials in an easy handling design. Top discharge provides maximum motor cooling efficiency allowing continuous duty operation at low levels and extended dry-run capability.
- LB-800 Slimline design pumps allow to fit into 8 in pipes.

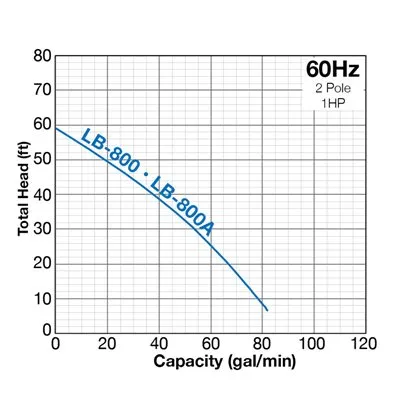

- Up to 59 ft shut off head.
- Available in 230V single-phase for lower amperage draw and longer cable extensions.
- Dual Inside Mechanical Seal With SiC faces provides longer operational life.
- Oil Lifter provides lubrication of the seal faces. (Patented)
- LB-800 (Single Phase) and LBT-800 (Three Phase) are available. (OptionalAccessories)
- Float Switch for automatic operation TS-302 for 115V, TS-303 for 230V.
Specifications
Motor Output (HP) | 1 |
Phase | Single |
Discharge Bore (in.) | 2 |
Voltage/Amp | 115/9.6 |
Cable Length (ft.) | 50 |
Dimension (Dia x H, in.) | 7-9/16 x 13-7/16 |
Continuous Running Water Level (in.) | 2 |
Pump Weight (lbs.) | 35 |
QUANTITY DISCOUNT: 2 or more
