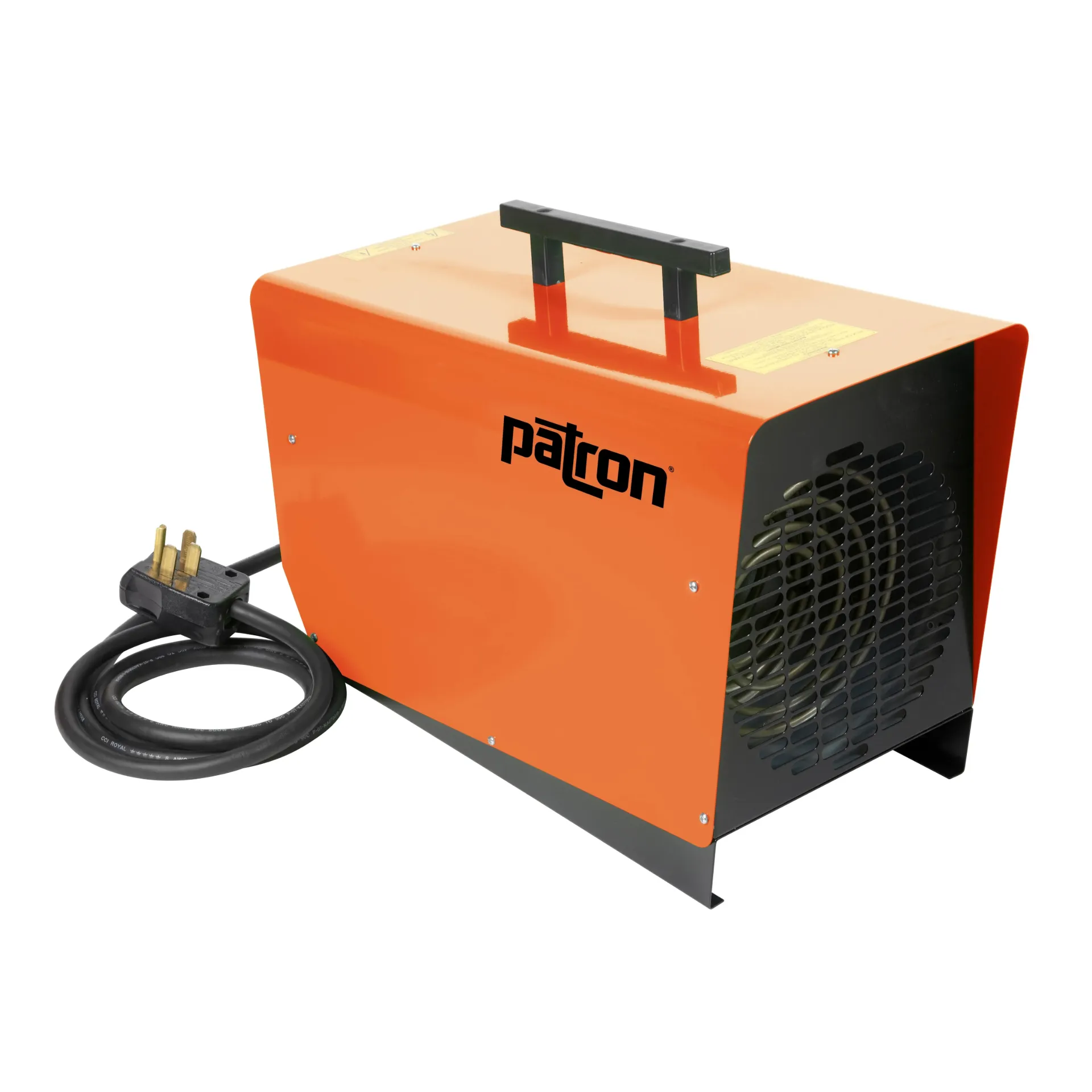

Item Number: PA-E9
The Patron E9 is a top seller which exceeds expectations on a regular basis. It can be used in the most demanding of environments and has proven its abilities in hundreds of applications. The E9 is a 240V unit and pulls 25-37.5 amps. This means it will run flawlessly off a household stove receptacle. Make sure your receptacle is a NEMA 14-50P configuration, to ensure compatibility with our plug. The E9 produces a ton of heat, and disperses it in large areas with its 350 CFM fan.
Features
- For heating, drying, and ventilating
- Integrated ambient thermostat from 32°F - 100°F
- Overheat protection at 104°F
- Durable steel casing with powder coating
- Stainless jacketed heating coils
- Fast, high temperature rise with uni-directional fan
- User-friendly and proven reliability
- Works on 208V
- Plugs into at standard stove outlet
- Can be switched down to 6kW output
| Heat Output (BTU/Hr) | 30,700 |
|---|
| Voltage (V) | 240V (1-PH) |
| Amperage (A) | 37.5 A |
| Wattage (W) | 9,000 W |
| Airflow (CFM) | 350 CFM |
| Cord Length | 10-ft (8 AWG) |
| Plug Type | NEMA 14-50P |
| Sound (Decibels) | 55 dB(A) 1m |
| Weight (LBS) | 39.9 LBS |
| Dimensions | 23" x 14" x 18" |
| Warranty | 2 Years |
| Certification | UL / cUL |
| Max Cable Length | 50-ft (8AWG, 3-wire, SOOW)
100-ft (6AWG, 3-wire, SOOW) |
QUANTITY DISCOUNT: 4 or more
